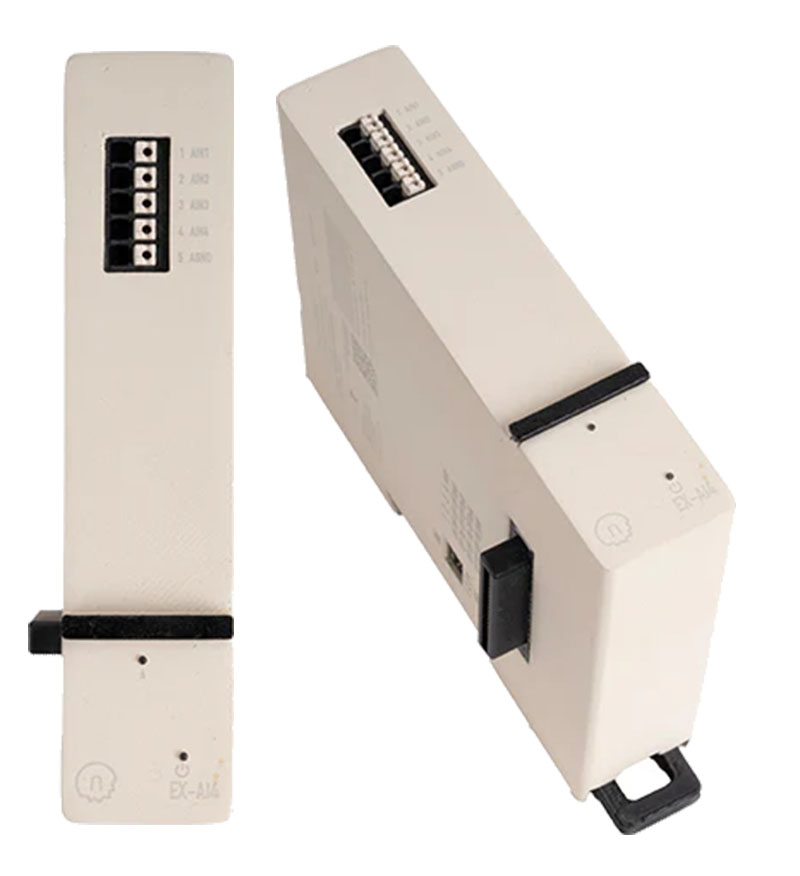

NORVI X-AV4 (Extension Modul f. Norvi X, 4x Analog Inputs, 0 – 20mA)

PRODUCT IS CURRENTLY NOT AVAILABLE !
NORVI X-AV4 (Extension Modul f. Norvi X, 4x Analog Inputs, 0 – 20mA)
  • Norvi X Series !
  • 4x Analog Inputs !
  • 0 – 20mA !
  • Extension !

  • 4 × Analog Input channels
  • High-resolution ADC (16-bit)
  • I²C communication interface
  • Suitable for industrial signal monitoring
  • Compact design for expansion systems
  • Designed for NORVI X modular architecture
[more]

Share

  • 4 × Analog Input channels
  • High-resolution ADC (16-bit)
  • I²C communication interface
  • Suitable for industrial signal monitoring
  • Compact design for expansion systems
  • Designed for NORVI X modular architecture


The NORVI X-AI4 is a 4 x Analog Inputs Expansion module designed for the NORVI X modular controller platform.

It provides four analog input channels suitable for industrial monitoring and measurement applications. The inputs are conditioned using precision signal amplifiers and digitized through an ADS1115 I²C ADC, enabling accurate data acquisition with minimal MCU I/O usage.



Range of product NORVI X
Product type /
Model
Expansion Module f. NORVI X Series
NORVI X-AI4
Certifications EN 61131-2:2007
EN 61010-1:2010+A1:2019
EN IEC 61010-2-201:2018
2014/30/EU- Electromagnetic Compatibility (EMC)
Annex III, Part B, Module C
Dimmensions 81 x 104 x 23 mm
Mounting DIN RAIL
Terminal Type Push-in terminal
Envirement IP20
Operating altitude: 0-2000 meters
Operating Temperature: -10 ... - +85°C
Shock resistance: 15 gn for 11ms
Resistance to electrostatic discharge: 4kV on contact / 8kV on air
Supply Voltage (V) 24V / 80mA
I/O Specification
Number of Analog Inputs 4
Analog Input Measurement Range 4 – 20mA / 0 – 20mA
Analog to Digital Converter (ADC) ADS1115
ADC Resolution 16-bit
ADC Communication I2C
ADC Power Supply 3.3 V
Data sheet Download (PDF)
Data sheet Print view
